Filter Cartridge

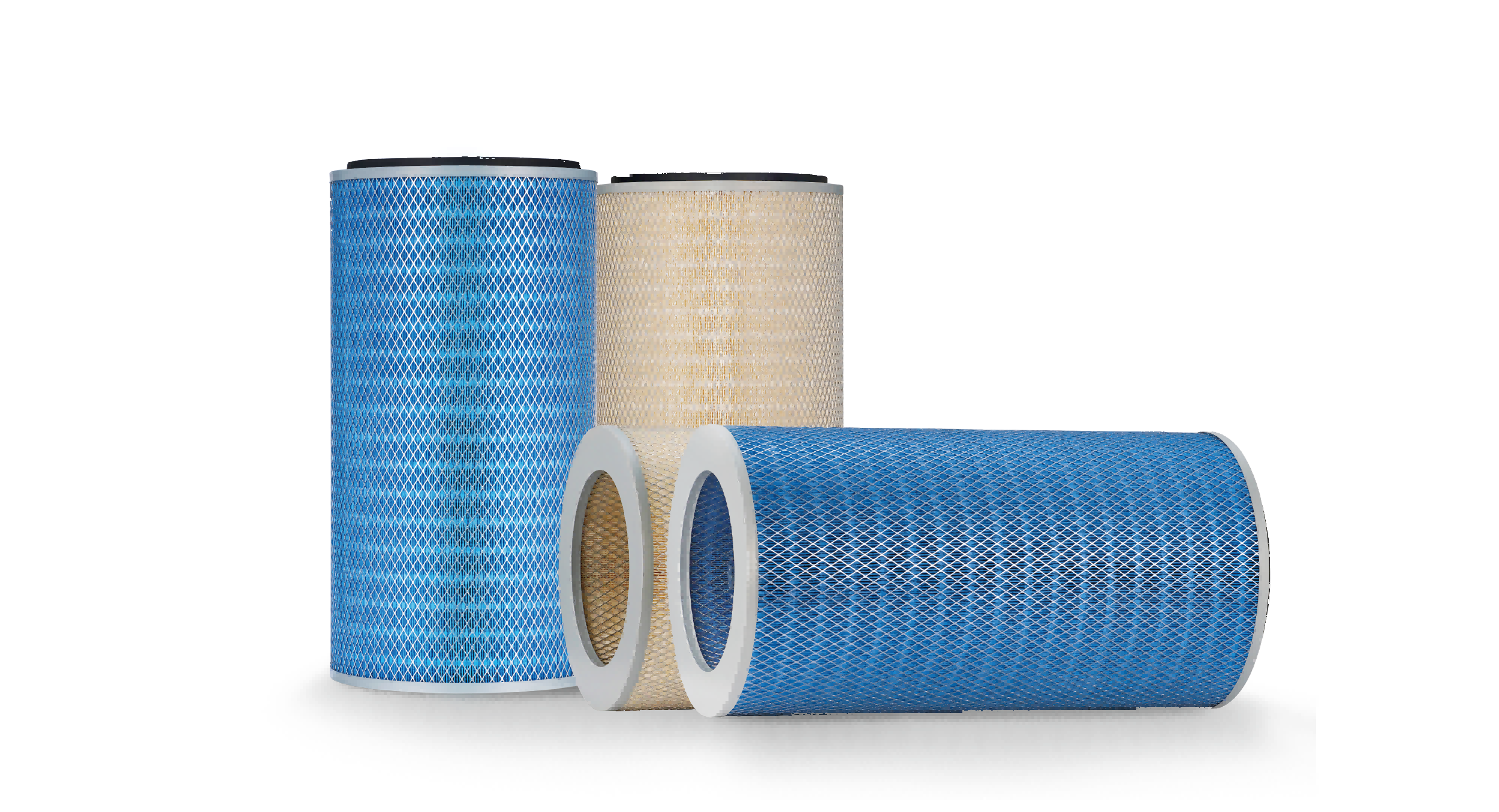

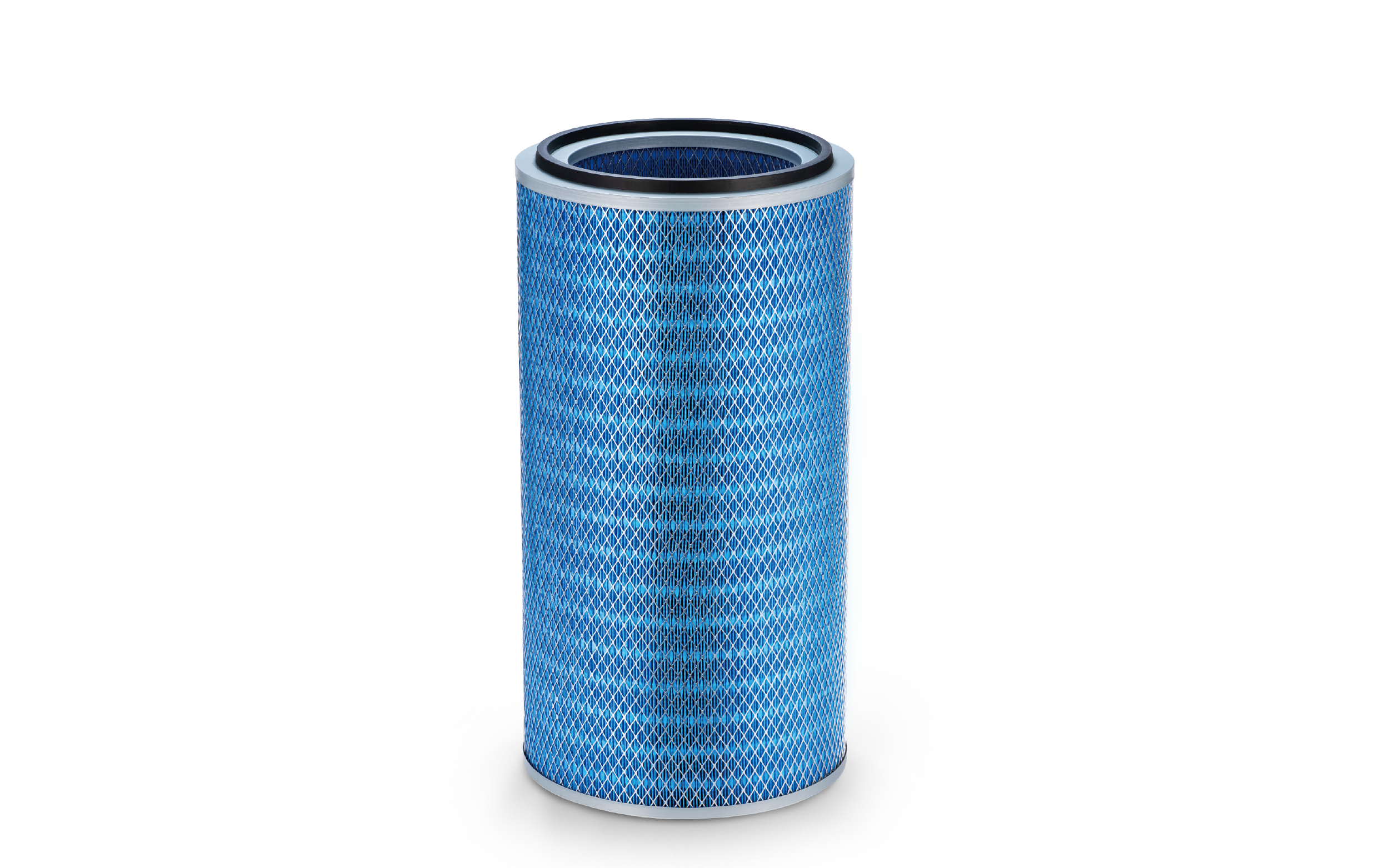

Cellulose filter cartridge for industrial dust collection with high breathability, stable airflow performance, and moisture-resistant filtration for cost-efficient long-term operation.
Product Overview
The cellulose filter cartridge is designed for industrial dust collection systems requiring stable performance in humid or coastal environments. It uses lightweight cellulose filter media with strong moisture resistance to achieve up to 99.5% filtration efficiency for 2 μm dust particles while maintaining low pressure drop and energy-efficient operation across a wide range of manufacturing applications.
Key Features

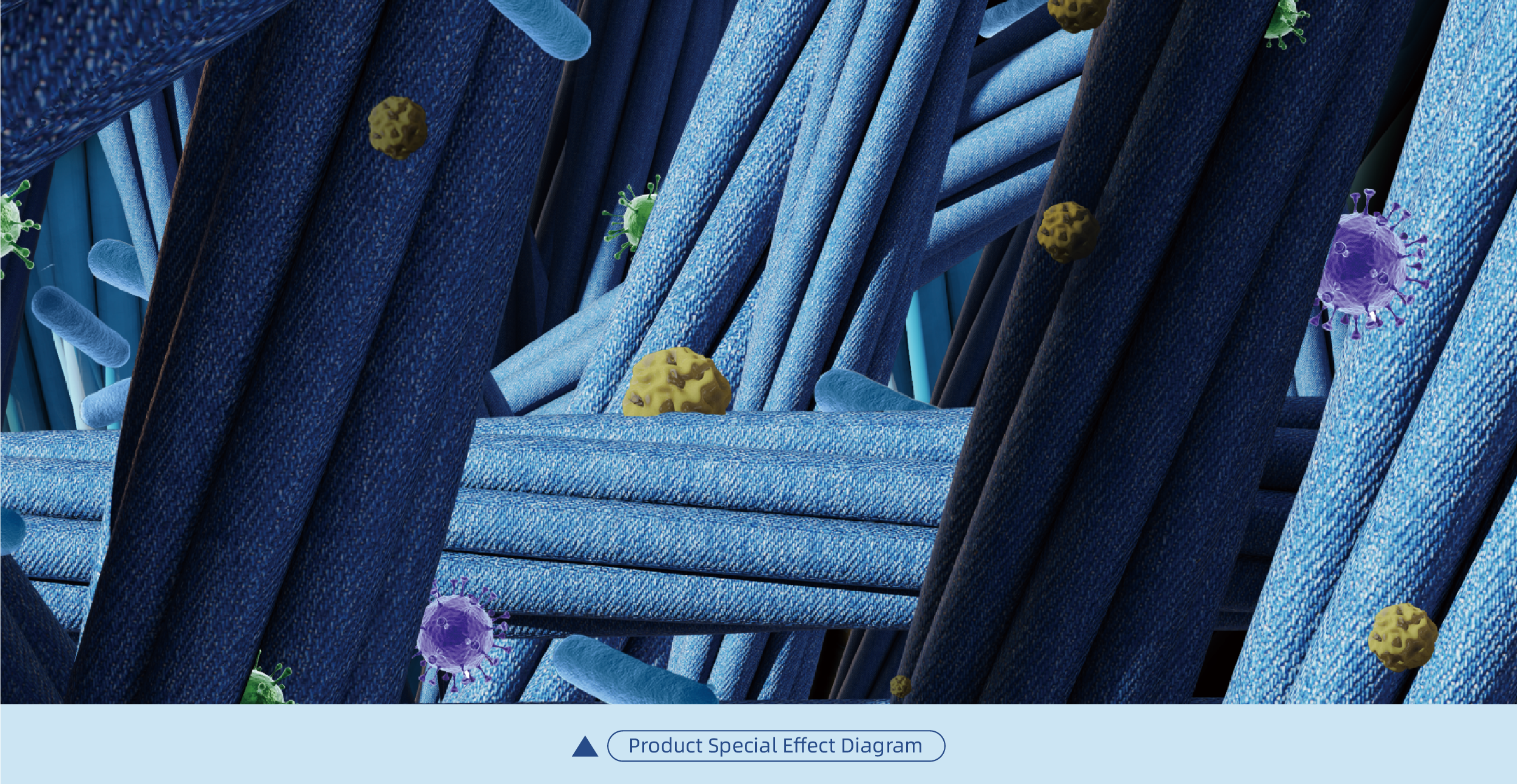

The cellulose filter cartridge uses breathable cellulose filter media to deliver stable dust capture performance while maintaining low airflow resistance and consistent filtration efficiency in industrial environments.
The cellulose filter cartridge features a cylindrical surround-filtration structure with a filtration area of ≥23 m², supporting high dust loading capacity and continuous industrial airflow operation.
The cellulose filter cartridge is designed for humid and coastal environments, offering moisture resistance and low energy consumption for long-term cost-effective industrial use.

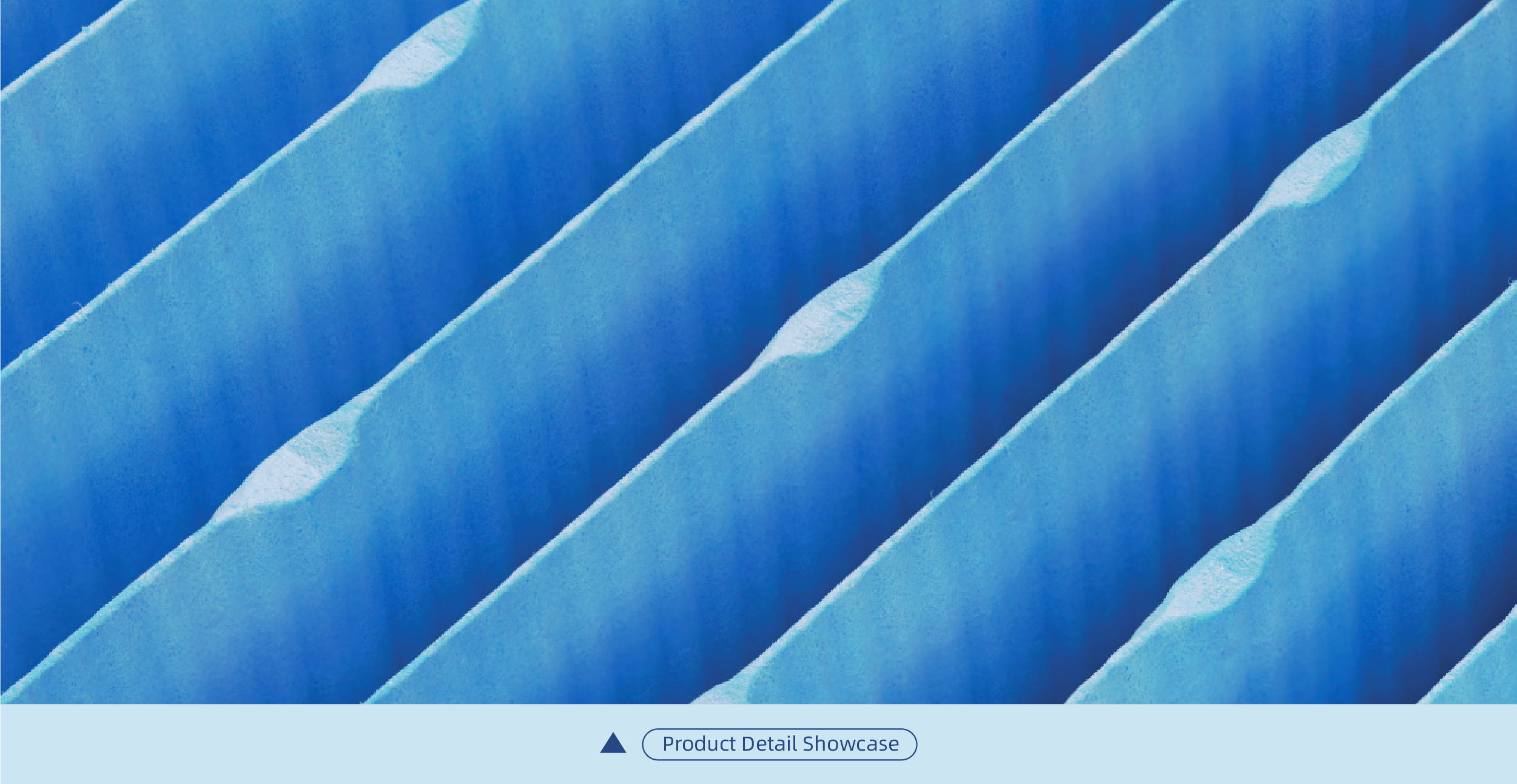

The cellulose filter cartridge is optimized for pulse jet cleaning systems with wide pleat spacing that supports efficient back-blow dust removal and stable pressure drop below 800 Pa.

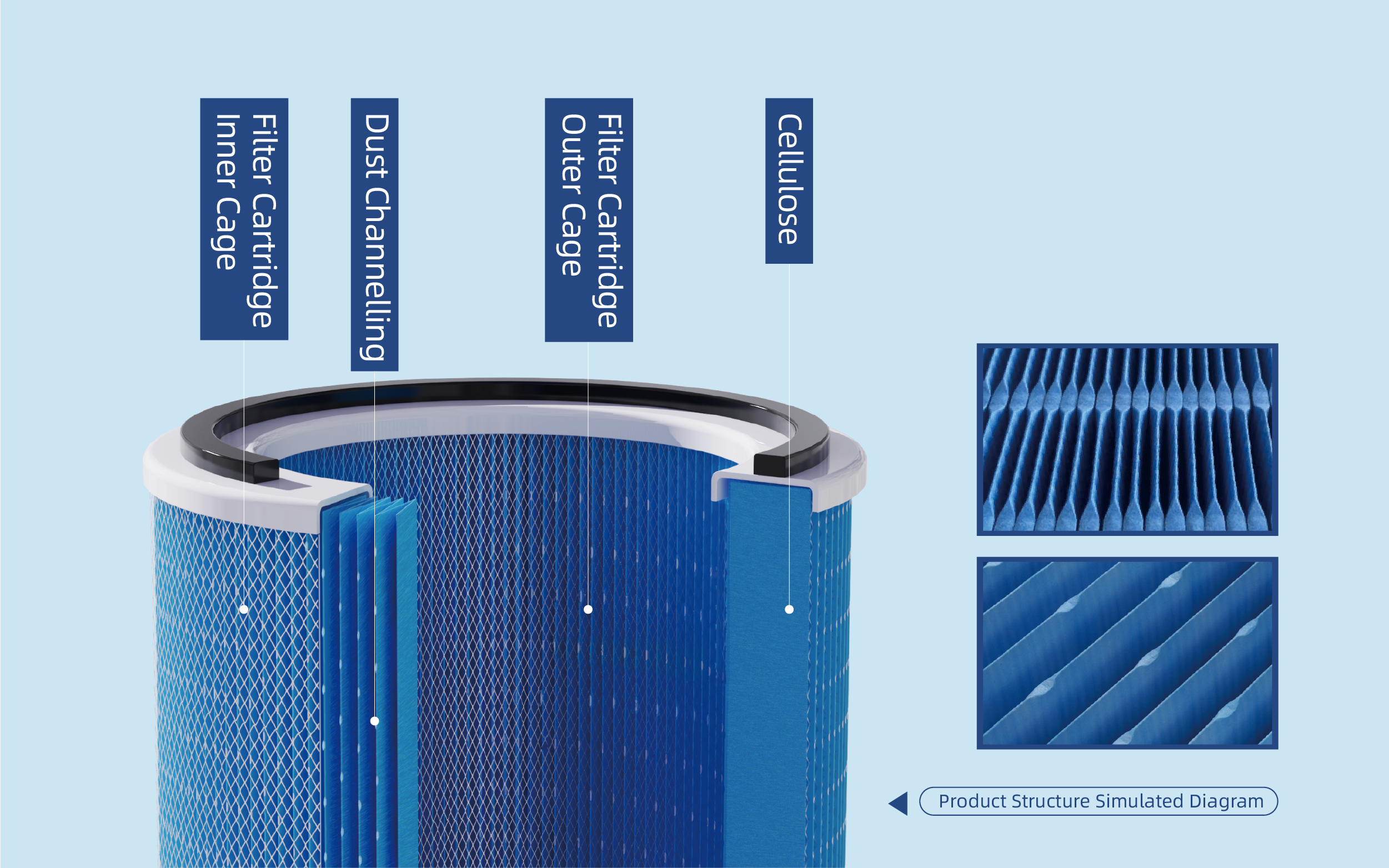

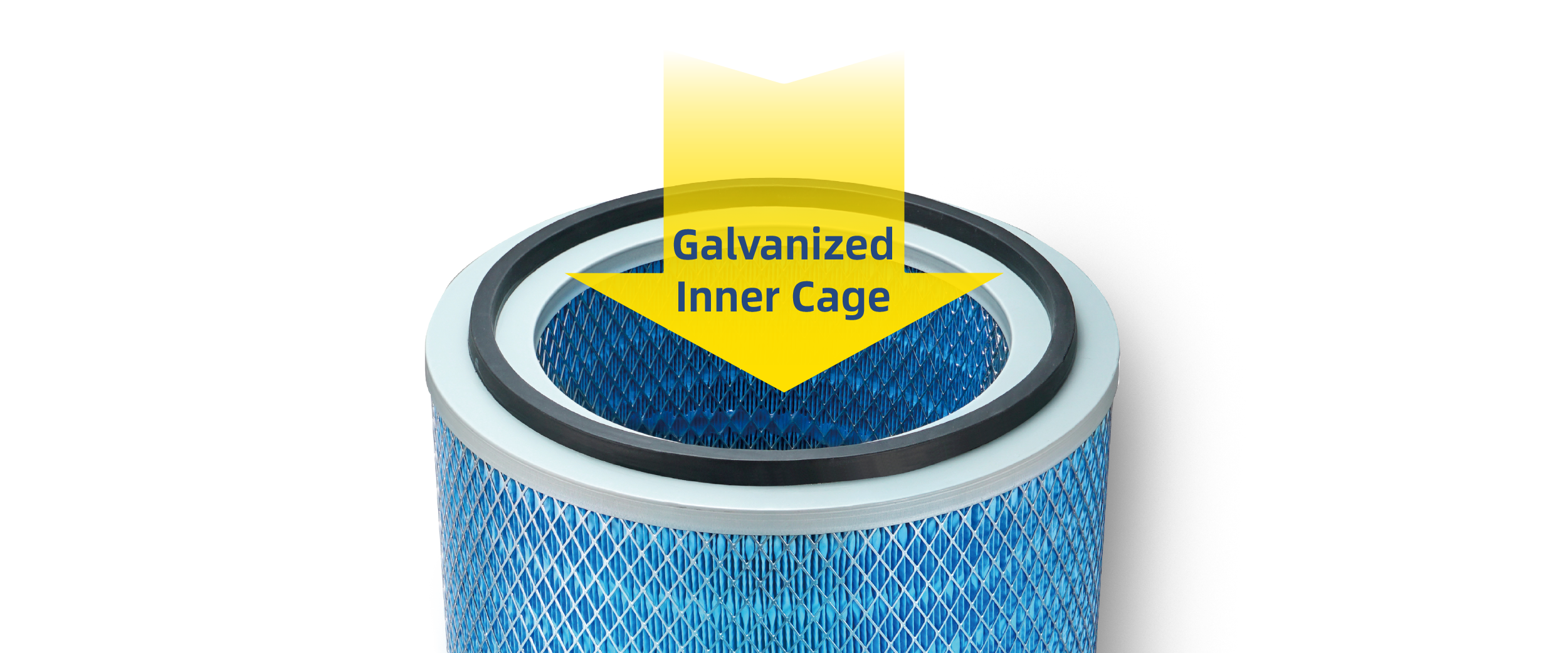

The cellulose filter cartridge uses a dual-layer inner and outer cage structure to maintain mechanical strength and ensure stable operation during repeated cleaning cycles.
The cellulose filter cartridge features a high-quality sealing ring for airtight installation and galvanized end caps for improved corrosion resistance and extended service life.

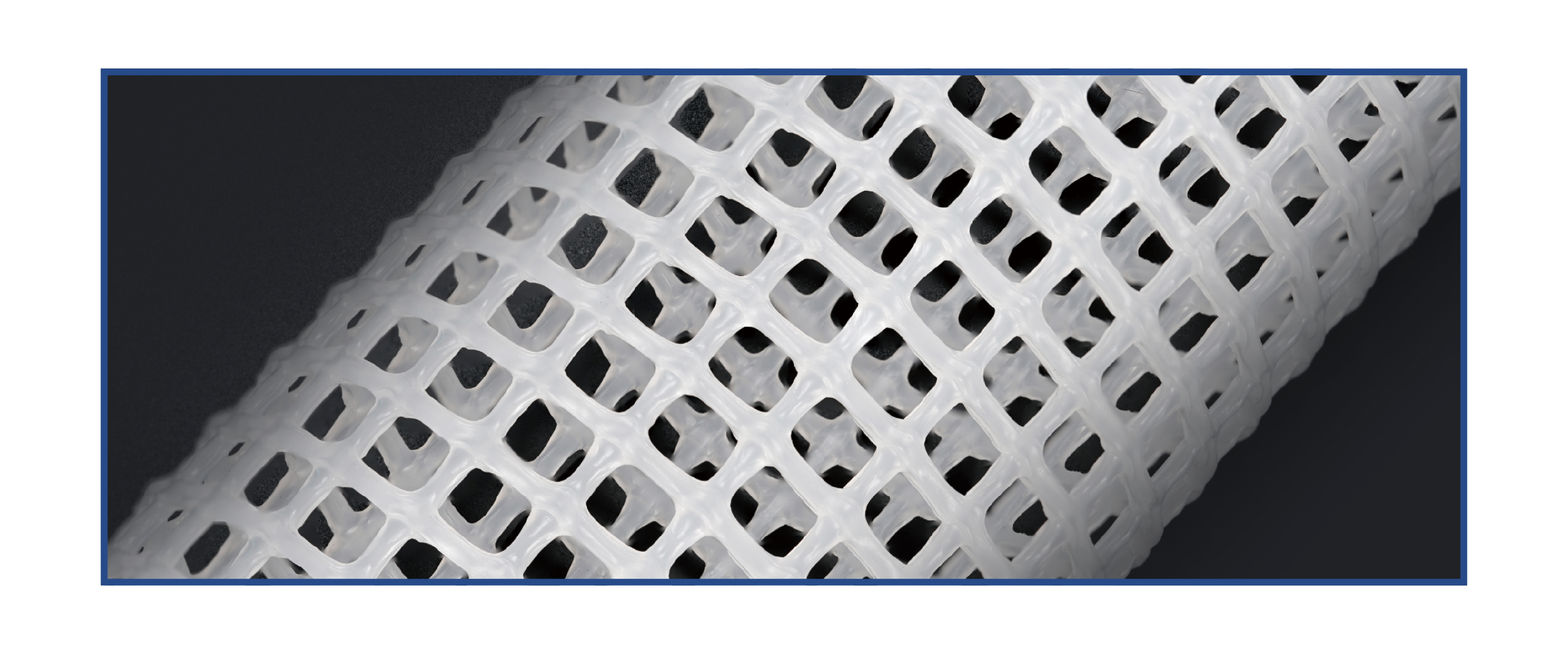

The cellulose filter cartridge offers an optional polypropylene inner tube for lightweight, corrosion-resistant applications in food and pharmaceutical processing environments.

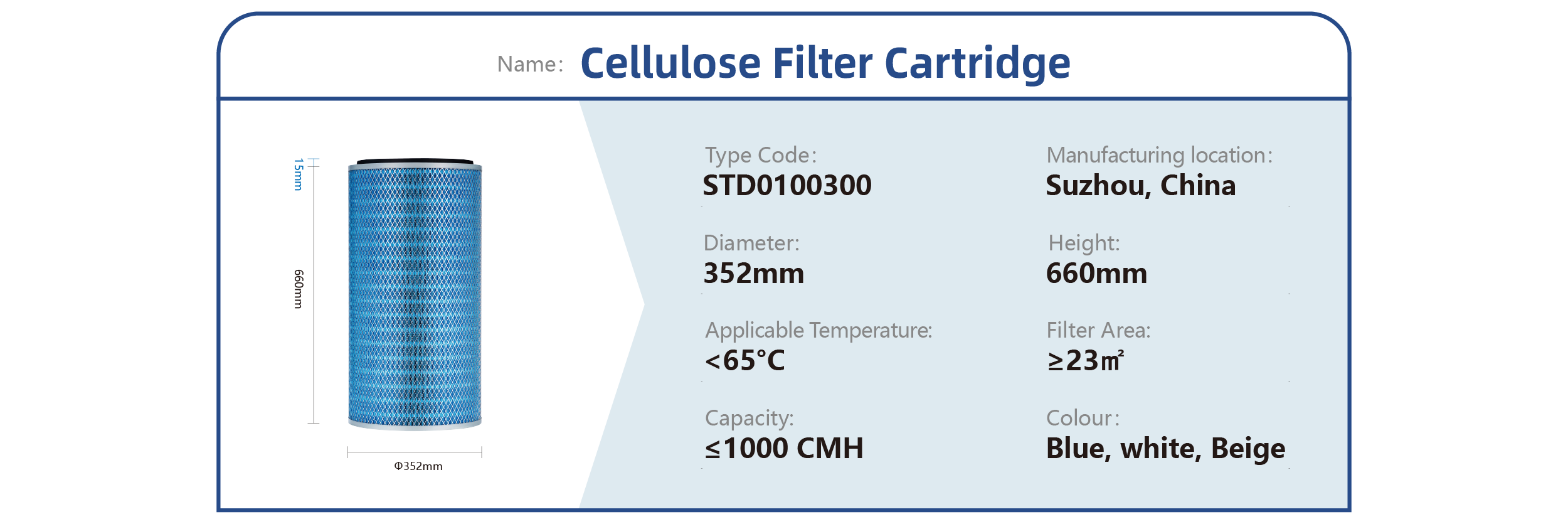

Technical Specification
| Type Code | STD0100300 |
|---|---|
| Manufacturing Location | Suzhou, China |
| Diameter | 352mm |
| Height | 660mm |
| Applicable Temperature | ≤65°C |
| Filter Area | ≥23㎡ |
| Capacity | ≤1000CMH |
| Filtration Efficiency | ≥99.5% |
| Colour | Blue, White, Beige |
