Filter Cartridge

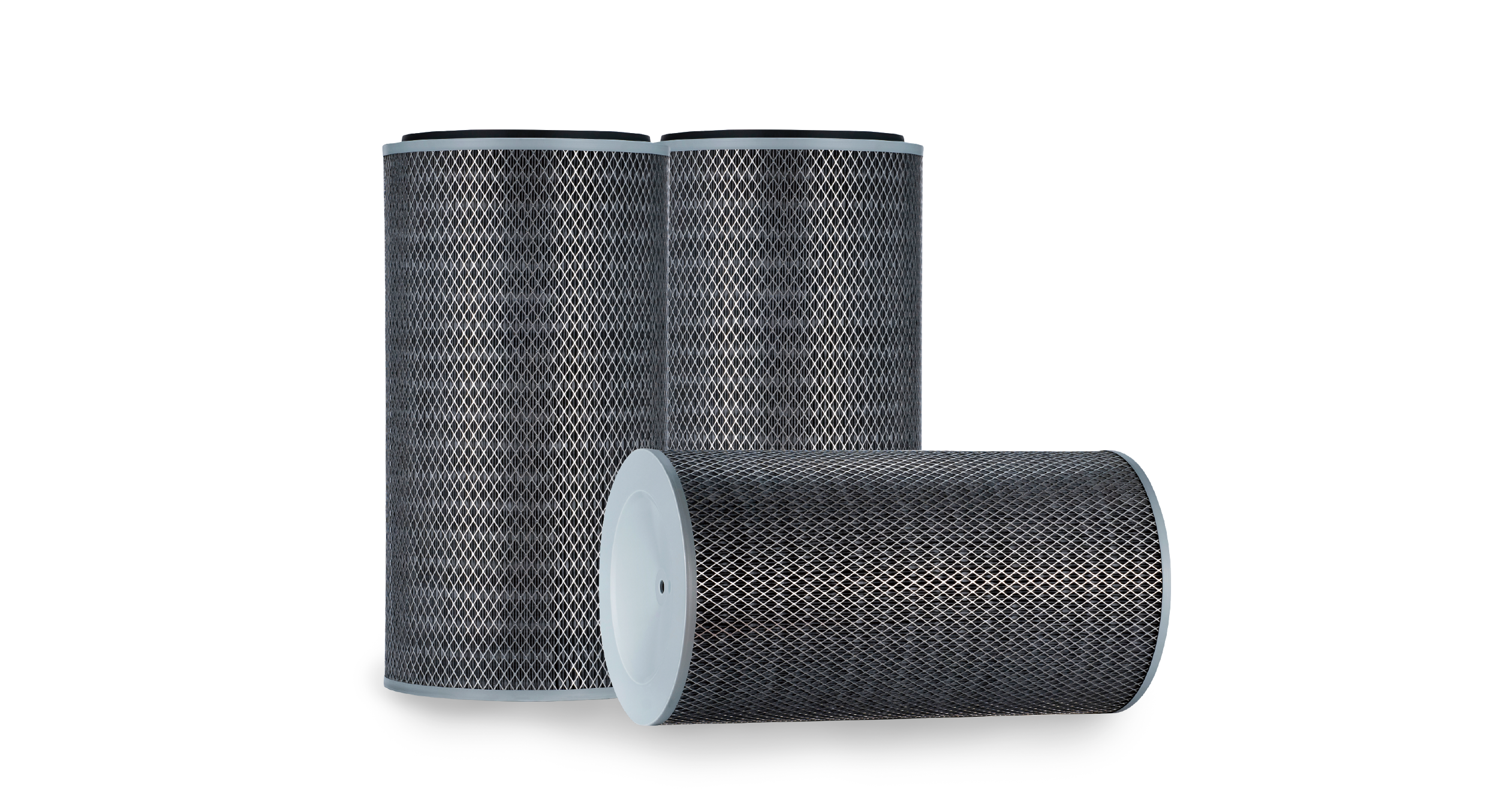

Nano fiber flame-retardant antistatic filter cartridge for high-efficiency industrial dust filtration with ultra-fine particle capture, stable airflow performance, and safe operation in demanding environments.
Product Overview

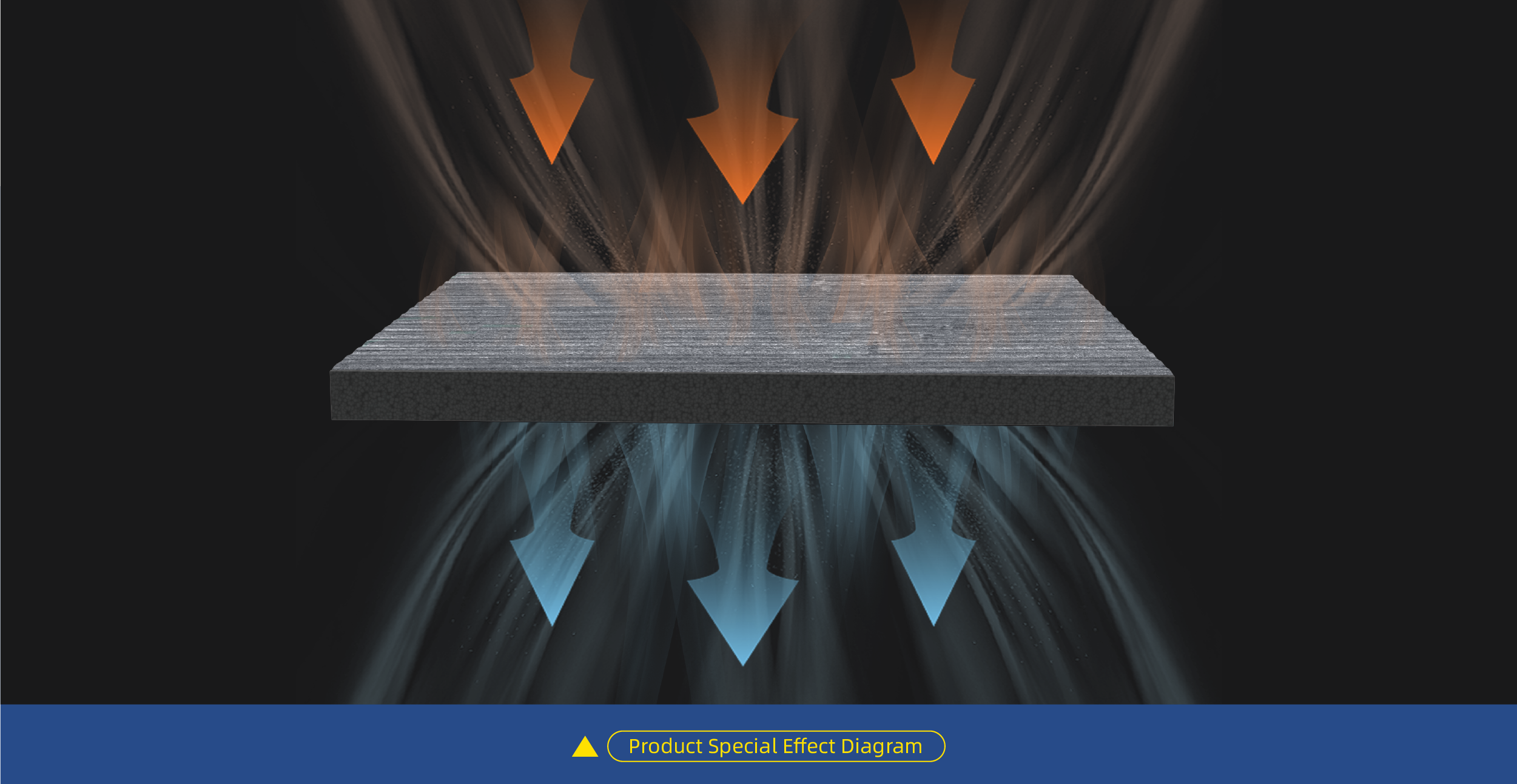

AuSSE's nano fiber flame-retardant antistatic filter cartridge is designed for high-precision industrial dust collection in environments with moisture, corrosion risk, or fine particulate emissions. It uses a nano-porous multi-layer filtration structure with flame-retardant and antistatic properties to achieve up to 99.97% filtration efficiency for 0.3 μm particles under controlled conditions while maintaining stable airflow and low resistance operation.
Key Features

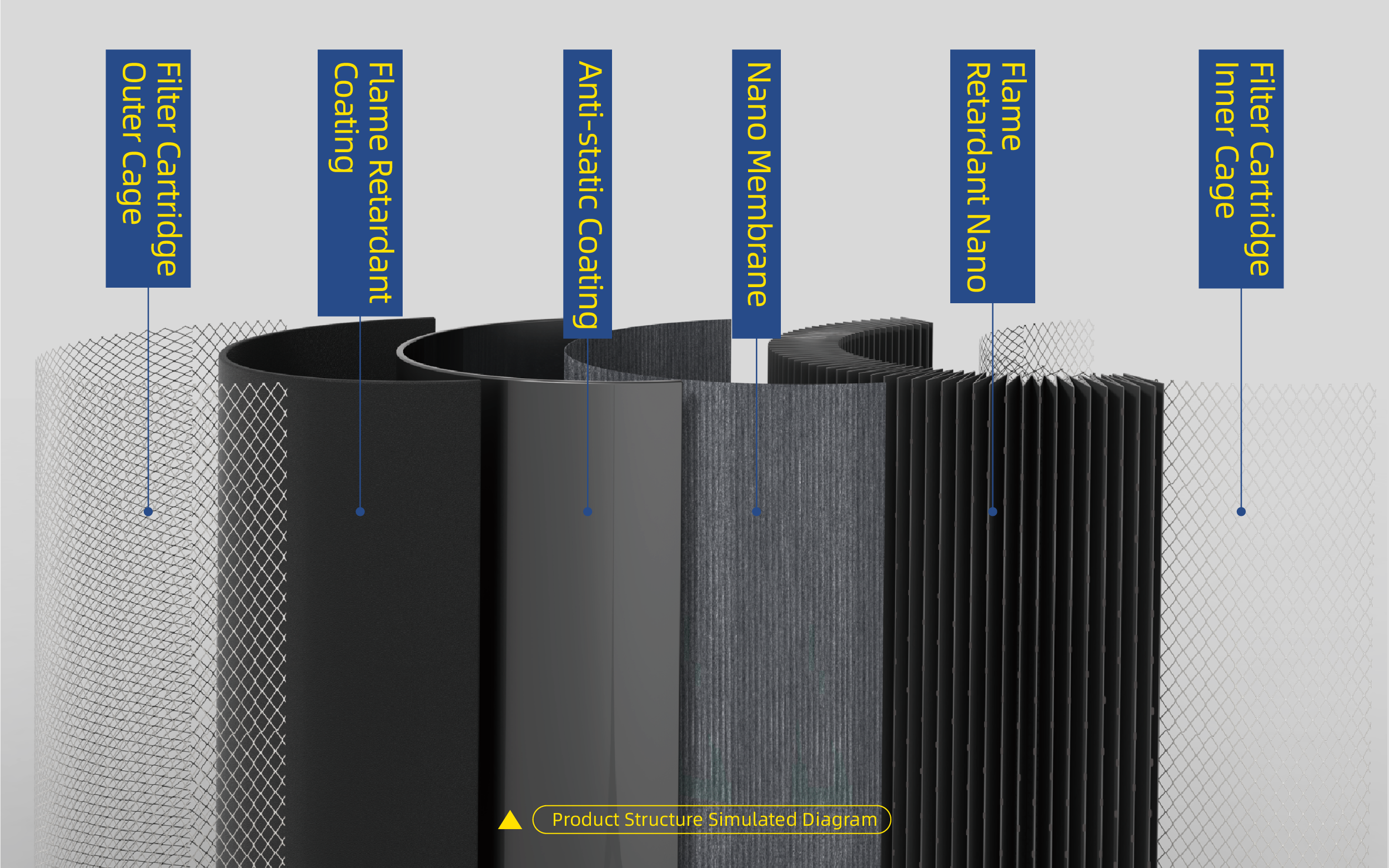

The nano fiber flame-retardant antistatic filter cartridge uses a nano-porous membrane with multi-layer coating technology to enhance fine particle capture efficiency and maintain stable filtration performance in industrial applications.
The filter cartridge integrates flame-retardant and antistatic properties within its filtration structure to reduce static accumulation and improve operational safety in combustible dust environments.

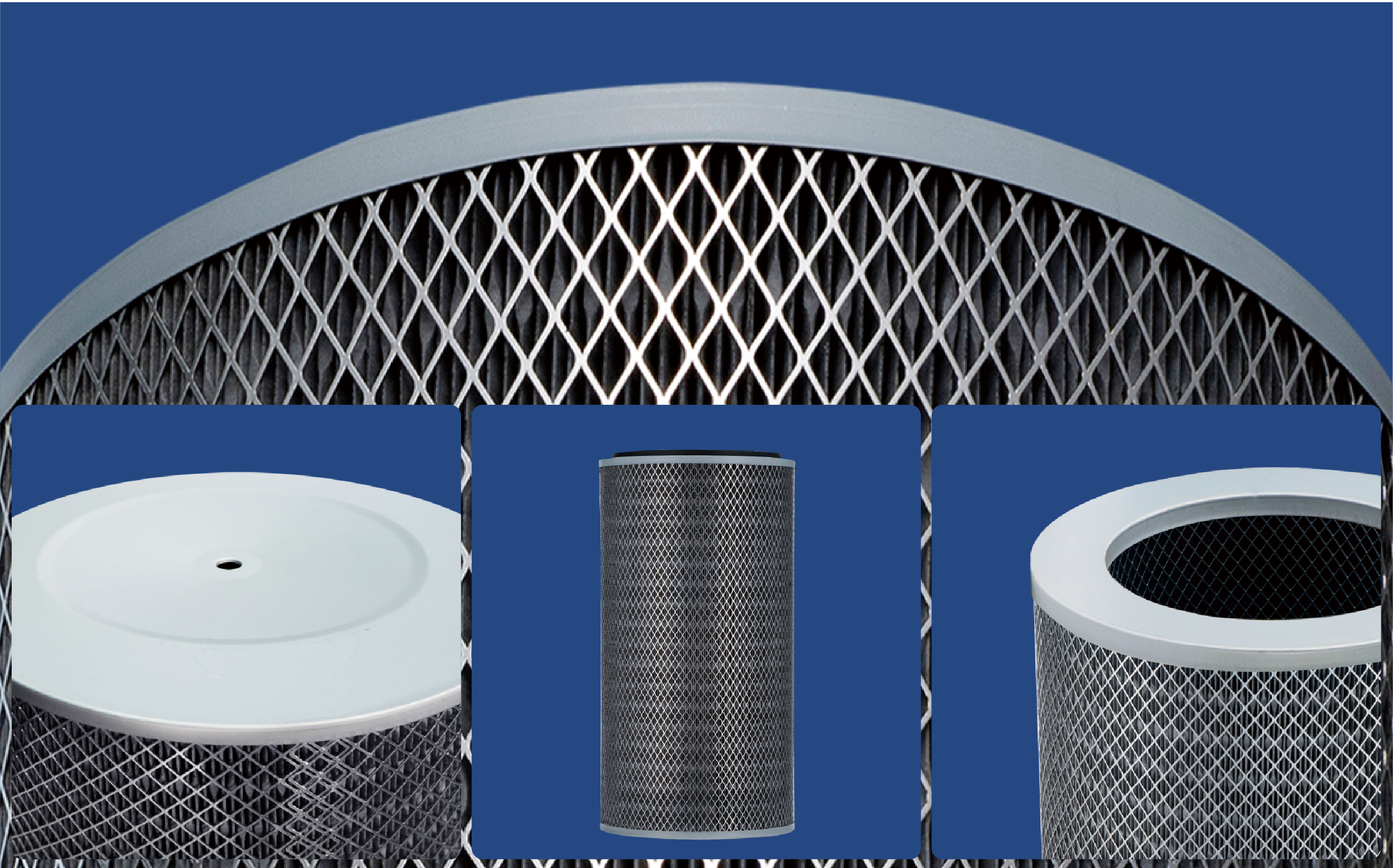

The nano fiber filter cartridge features inner and outer reinforced cages that maintain structural integrity under high airflow and continuous industrial dust loading conditions.

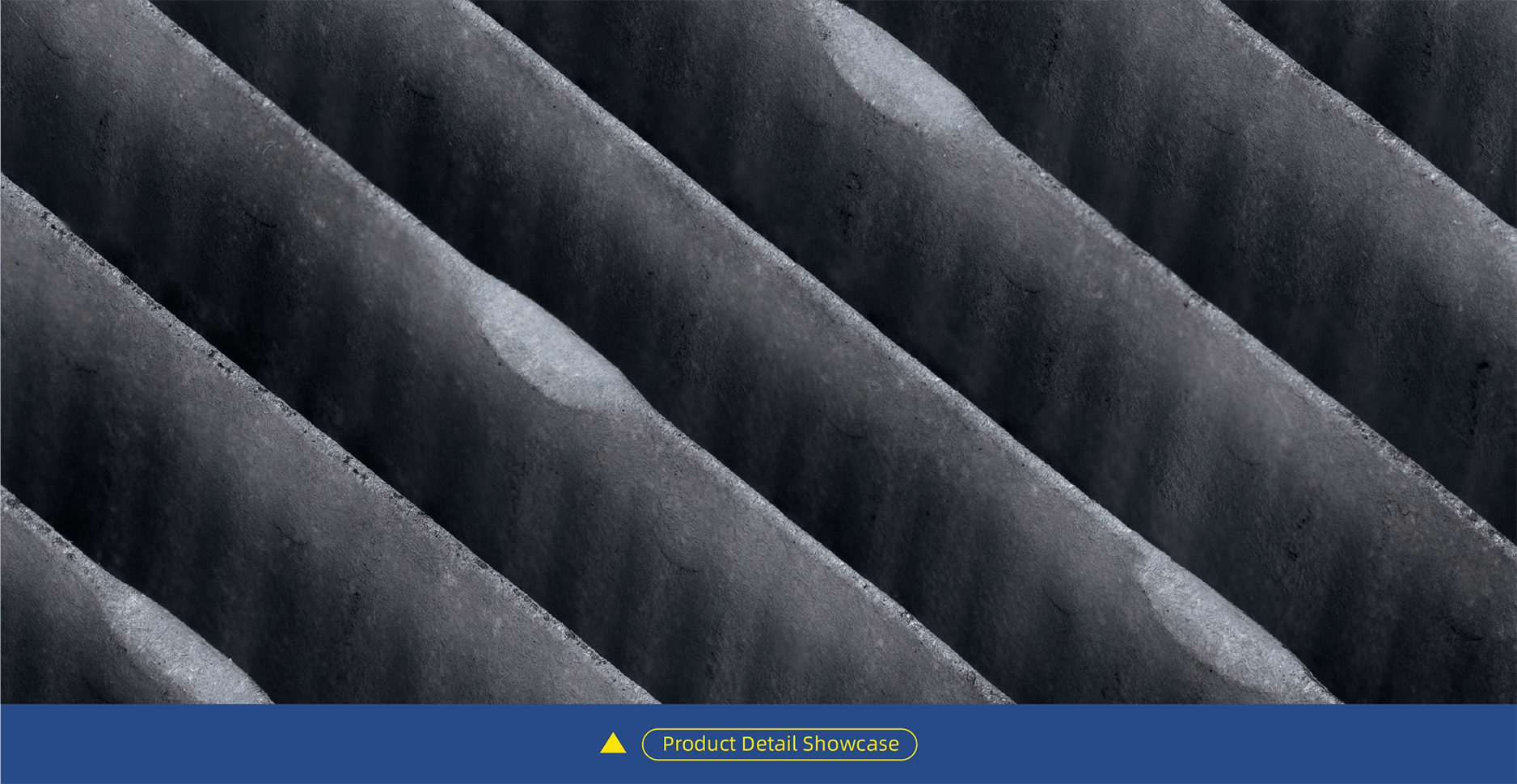

The filter cartridge is designed with optimized pleat spacing to support efficient dust release during pulse or back-blow cleaning, ensuring stable pressure drop and extended service life.
The nano fiber filter cartridge uses a specialized sealing ring for airtight installation and galvanized end caps for improved corrosion resistance and long-term durability.

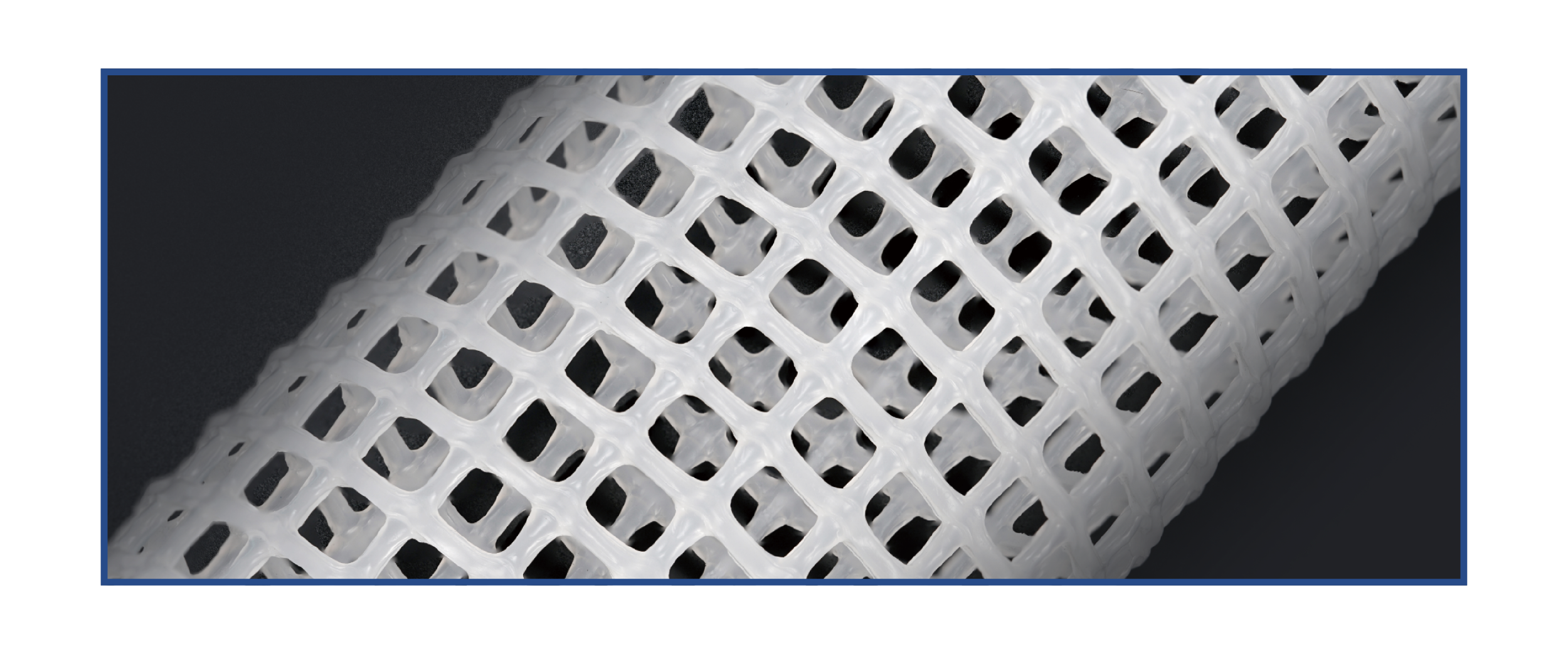

The filter cartridge offers an optional polypropylene inner tube suitable for hygienic applications such as food and pharmaceutical processing environments requiring corrosion-resistant and lightweight materials.

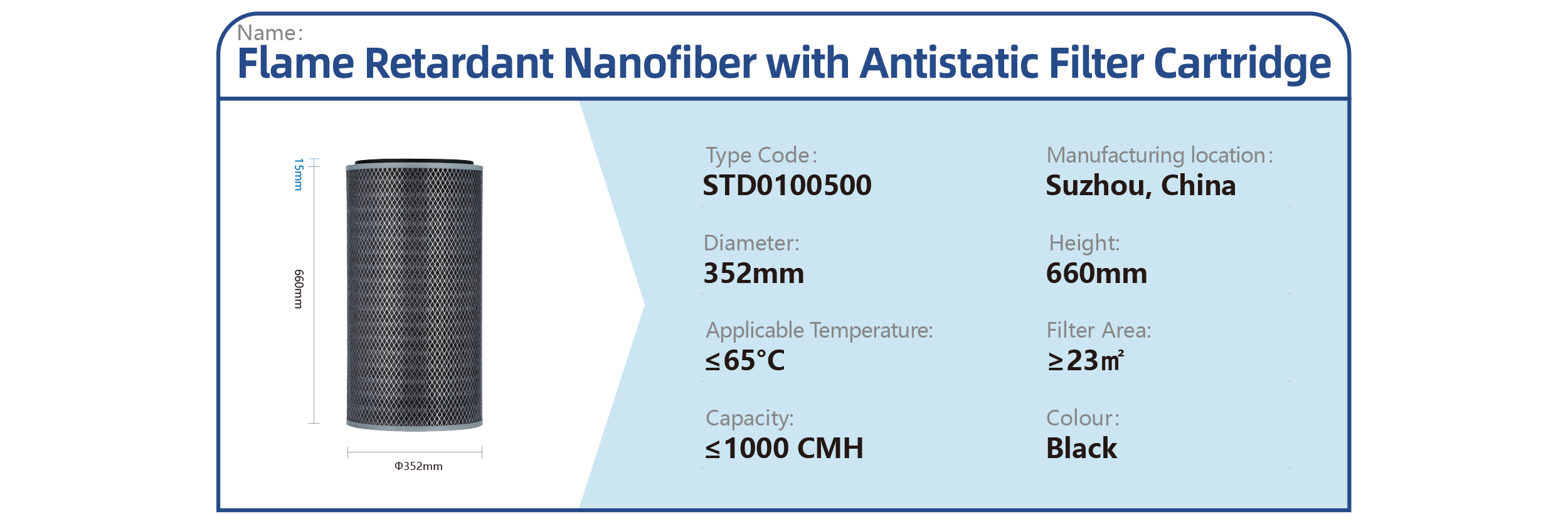

Technical Specification
| Type Code | STD0100500 |
|---|---|
| Manufacturing Location | Suzhou, China |
| Diameter | 352mm |
| Height | 660mm |
| Applicable Temperature | ≤65°C |
| Filter Area | ≥23㎡ |
| Capacity | ≤1000 CMH |
| Filtration Efficiency | ≥99.97% |
| Colour | Black |
